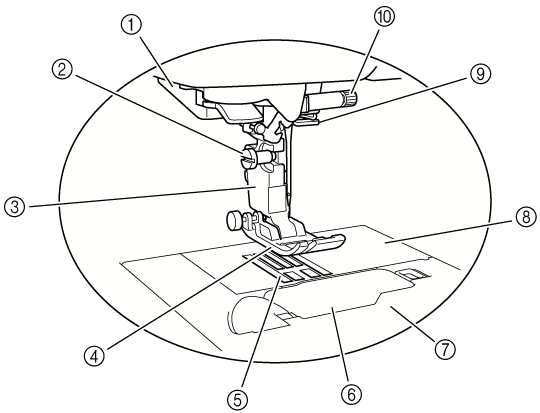

Needle and Presser Foot Section

  1. Buttonhole lever
  2. Presser foot holder screw
  3. Presser foot holder
  4. Presser foot

    The presser foot consistently applies pressure to the fabric as sewing takes place. Attach the appropriate presser foot for the selected stitch.

  5. Feed dogs

    The feed dogs feed the fabric in the sewing direction.

  6. Bobbin cover
  7. Needle plate cover
  8. Needle plate
  9. Needle bar thread guide
  10. Needle clamp screw
Measurements on the needle plate

The measurements on the needle plate are references for stitch patterns with a left or middle (center) needle position.

  1. For stitches with a middle (center) needle position
  2. For stitches with a left needle position
  3. Left needle position on the needle plate <inch>
  4. Left needle position on the needle plate <cm>
  5. Left needle position on the needle plate cover <inch>
  • For included accessories of your machine, refer to the “Included Accessories” sheet provided in the machine’s carton and posted at https://babylock.com/machine-support-and-updates.
  • After opening the box, check that all accessories are included. If any item is missing or damaged, contact your authorized Baby Lock retailer.
