Selecting Embroidery Patterns

  1. Touch the category key and pattern key you want to embroider.

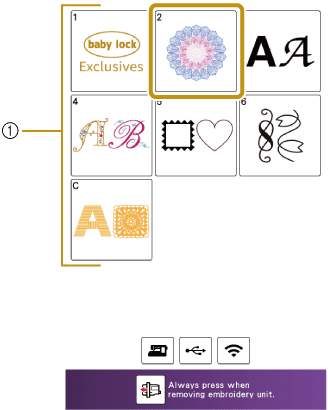

    1. Pattern category key

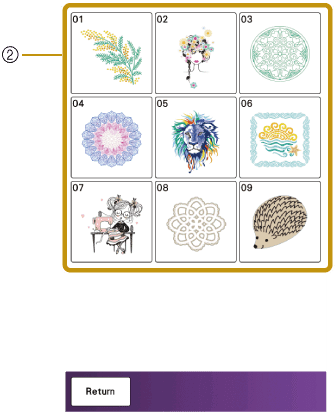

    2. Pattern type/pattern selection key

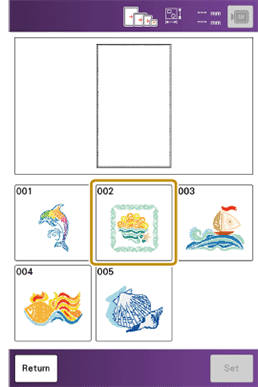

  2. Select a pattern.

    Touch [Return] to return to the previous screen.

    • The selected pattern is displayed.

  3. Touch [Set] to set the pattern.

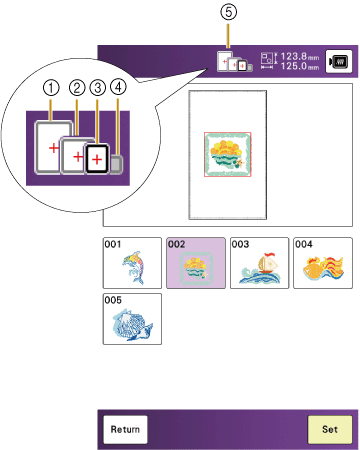

    • Available frame options are displayed on the screen.
    1. 360 mm × 200 mm (approx. 14 inches × 8 inches)
    2. 200 mm × 200 mm (approx. 8 inches × 8 inches)
    3. 180 mm × 130 mm (approx. 7 inches × 5 inches)
    4. 100 mm × 100 mm (approx. 4 inches × 4 inches)
    5. Available frame options

      White: Can be used
      Gray: Cannot be used
    • The pattern is designated with a red box around it on the edit screen.

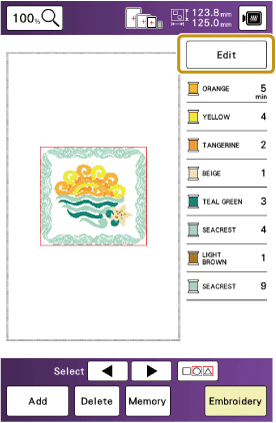

  4. Touch [Edit] to edit the selected pattern.

    Editing Patterns

  5. Touch [Embroidery].

    • The embroidery screen appears.

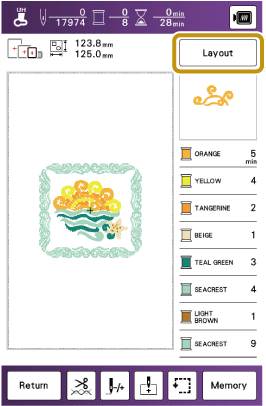

  6. Touch [Layout] to edit the pattern before embroidering. (Viewing the Embroidery Screen)

    To return to the edit screen, touch [Return].

  7. Start embroidering.

    Embroidering a Pattern
