Retrieving Embroidery Patterns

1. When retrieving the embroidery patterns from a USB flash drive, insert the USB flash drive into the USB port on the machine.
   To retrieve embroidery patterns via wireless network, use Palette (version 11 or later) or Design Database Transfer to transfer the patterns in advance. For details on transferring embroidery patterns, refer to the manual for Palette or Design Database Transfer.

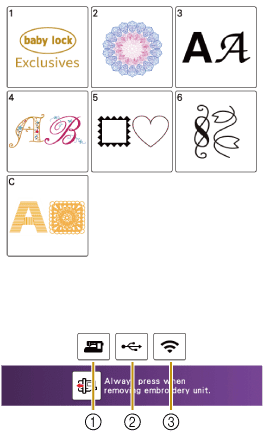

   1. Retrieve from the machine’s memory.
   2. Retrieve from a USB media.
   3. Retrieve the pattern via the wireless network connection. For detailed procedures, refer to Palette manual (Version 11 or later).

      Embroidery patterns which were uploaded via wireless network will be deleted from the machine when turning the machine off or entering the Power saving mode. Save patterns to the machine memory if necessary.

      For details on supported file extensions, refer to the following link.

      Specifications

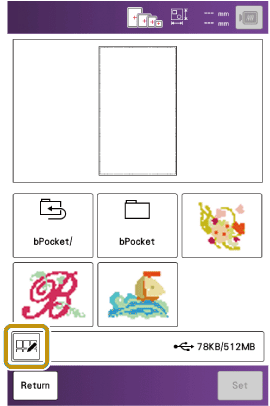

   • If the embroidery pattern to be retrieved is in a folder of the USB media, touch the key for that folder. Touch to return to the previous screen.
   • You can save all or multiple data to the machine by touching .
   • To select multiple patterns, touch their thumbnails.
   • : Select all patterns.
   • : Deselect all patterns.
   • : Save the selected patterns to the machine.

   To cancel the selection, touch again.

2. Touch [Set].

   Touch to delete the embroidery pattern.
