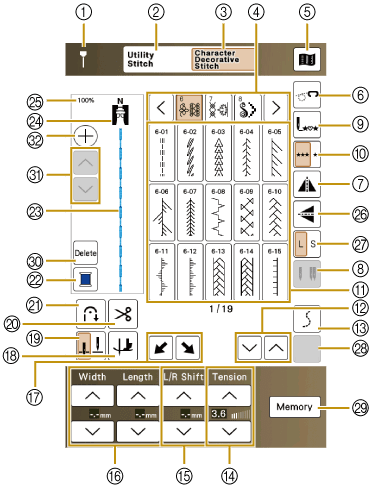

Character/Decorative Stitches
- Some editing functions cannot be used with certain stitch patterns. Only the functions for the displayed keys are available when a stitch pattern is selected.
- The machine default setting is highlighted.
- Guideline marker key
Shows the status of the external guideline marker. When the marker is attached, touch this key to turn the guideline on or off. The guideline marker makes it easier to align stitches with the fabric edge or other marks on the fabric.
- Utility stitch key
Select a straight stitch, zigzag stitch, buttonhole, blind hem stitch, or other stitch (utility stitch) commonly used in garment making.
- Character/Decorative stitch key
Select character or decorative stitch patterns.
- Category keys
Select the category of the stitch.
Touch
or
to view other categories.
Decorative stitch patterns
7mm decorative stitch patterns
You can set stitch length and width.
Satin stitch patterns
7mm satin stitch patterns
Cross stitch
Utility decorative stitch patterns
Alphabet characters (gothic font)
Alphabet characters (handwriting font)
Alphabet characters (outline)
Cyrillic font
Japanese font
Stitch patterns saved in the machine’s memory (Retrieving Embroidery Patterns) - Image key
Display an enlarged image of the selected stitch pattern.
Touch
to change the thread color in the image.
To display the enlarged image, touch
.
To view any part of the image that extends out of the viewable display area, touch
/
/ / . - Free motion mode key
Enter free motion sewing mode.
The presser foot is raised to an appropriate height and the feed dog is lowered for free motion quilting. - Horizontal mirror image key
Create a horizontal mirror image of the stitch pattern.
- Needle mode selection key
Select a needle mode (single/twin).
- If a key display is grayed out, you cannot use that function with the selected stitch pattern.
- Back to beginning key
When sewing is stopped, touch this key to return to the beginning of the stitch pattern.
- Single/Repeat sewing key
Select single stitches or continuous stitches. To finish a complete motif while sewing the stitch pattern continuously, you can touch this key while sewing. The machine will automatically stop when the motif is finished.
- Stitch selection area
Select a stitch pattern.
- Page key
Touch
or
, to move the pages of stitch selection area. - Curve sewing key
Set the function to assist with curve sewing.
- Thread tension
Shows the thread tension setting of the currently selected stitch pattern. You can use
and
to change the thread tension settings. - “L/R Shift”
Touch
to shift the stitch pattern to the right or touch to shift the stitch pattern to the left. This feature is not available for all stitch patterns. Only those applicable will be shifted. - Stitch width and stitch length
Shows the zigzag width and stitch length settings of the currently selected stitch pattern. You can use
and to adjust the zigzag width and stitch length settings. - Step stitch keys
Make step stitch patterns.
Making Step Stitch Patterns (for 7mm Satin Stitch Patterns Only)
- Pivot key / Auto up key
Touch this key to automatically raise the presser foot when the machine is stopped.
While the pivot function is turned on, the presser foot is automatically lowered when sewing is restarted. - Needle stop position setting key
Touch this key to select the needle stop position to be up or down.
You can also check the needle mode setting (single or twin).
Single needle/down position
Twin needle/down position
Single needle/up position
Twin needle/up position - Automatic thread cutting key
Turn on this function to set the machine to automatically trim the threads at the end of stitching.
- Automatic reverse/reinforcement stitch key
Turn on this function to set the machine to automatically sew reinforcement stitches at the beginning and end of sewing (depending on the stitch pattern, the machine may sew reverse stitches).
- Thread color change key
Change the thread color in the image.
- Stitch preview
Shows an image of the selected stitch. When shown at 100%, the stitch appears in the screen at nearly its actual size.
- Presser foot
Shows the presser foot to be used. Attach the presser foot indicated here before sewing.
- The symbols for certain presser feet, such as zipper foot “I”, may not appear in the screen.
- Stitch pattern display size
Shows the approximate size of the image of the stitch pattern selected.
The percentage changes depending on the size of the selected stitch pattern. - Vertical mirror image key
Create a vertical mirror image of the stitch pattern.
- Size selection key
Select the size of the decorative stitch pattern or character stitch pattern (large, small).
- Keys appearing depending on the selected stitch
Some of the following keys will appear, depending on the selected stitch pattern.
- Elongation key
When 7mm satin stitch patterns are selected, you can choose from five automatic length settings, without changing the stitch zigzag width or stitch length settings.
- Thread density key
When the satin stitch patterns are selected, you can change the thread density of the stitch pattern.
: Low density
: High density - Character spacing key
Change the spacing of character stitch patterns. The setting is applied to all entered characters.
- Elongation key
- Memory key
Save stitch pattern combinations.
- Delete key
Delete the selected stitch pattern.
- Selection key
Touch this key to select one of the stitch patterns in the combination.
- Add stitch pattern key
Touch this key when you want to combine decorative stitch patterns and/or character stitch patterns.
